1700℃ Magnesium Aluminum Spinel Brick R8 Clay Brick Fire Resistance

Name: 1700 Magnesium Aluminum Spinel Brick R8 Clay Brick Fire Resistance
Brand: YUDA
Price: 1 USD

Brand Name : YUDA

Model Number : R8

Certification : VDZ

Place of Origin : Beijing,China

MOQ : 1 Ton

Payment Terms : T/T, L/C

Supply Ability : 2000 tons/month

Delivery Time : 20-30 Days

Packaging Details : Packed on wooden pallets, with water-proof cover, and tightened with plastic/steel bandages

fire resistance : Excellent fire resistance

thermal shock resistance : Excellent thermal shock resistance

alkali salt corrosion resistance : Excellent alkali salt corrosion resistance

keyword : refractories materials

feature : fireproof,Heat Resistant

Service Temperature : 1000℃-1800℃

customized : yes

Contact Now

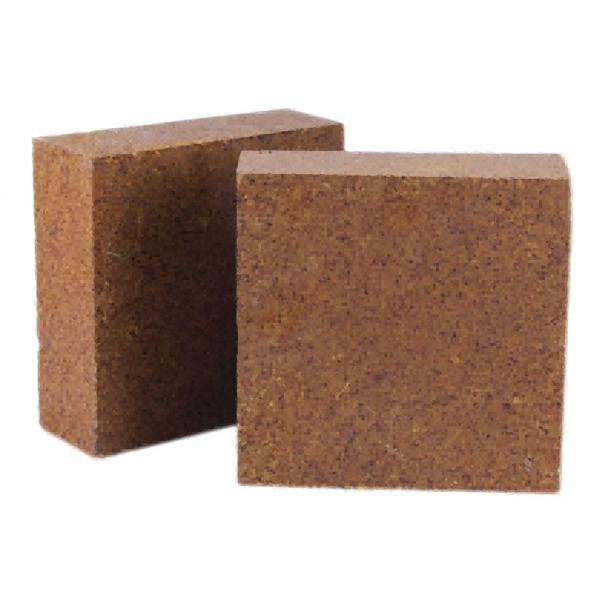

Magnesium Aluminum Spinel Brick(R8)

Magnesium Aluminum Spinel Brick(R8) /Excellent fire resistance/Excellent thermal shock resistance/Excellent alkali salt corrosion resistance

Summary:

Made from high-grade sintered magnesium oxide and fused magnesia alumina spinel as raw materials, the combination of high-grade sintered magnesium oxide and high content fused magnesia alumina spinel gives this product both good elasticity and resistance to alkali salt chemical erosion. This product is designed for the transition zone of rotary kilns with high thermal and chemical loads.

Product features:

1. Excellent fire resistance

2. Excellent thermal shock resistance

3. Excellent alkali salt corrosion resistance

Range of application:

Cement Kiln ( Increased chemical/thermal load) (Increased chemical/mechanical/thermal load) (Severe chemical/thermal load)Upper Transition Zone,Lower Transition Zone,Outlet Zone;(Increased chemical/mechanical/thermal load)Central Burning Zone;

Technical data:

Product Name			Magnesium Aluminum Spinel Brick(R8)
Chemical Composition (%)		MgO	85.9
		CaO	1.1
		SiO₂	0.5
		Al₂O₃	12.0
		Fe₂O₃	0.5
Bulk Density (g/cm³)			2.92
Apparent Porosity (%)			16
Cold Crushing Strength (MPa)			70
Refractoriness Under Load T0.6 (℃)			＞1700
Thermal Shock Resistance(Air Cooling)(Cycles)			＞100
Thermal Conductivity (W/m.K)	500℃		4.3
	750℃		3.5
	1000℃		3
Raw Material	Magnesia MA-spinel

Packaging and Storage:

Wooden pallets+thermoplastic film packaging,size 110×80×70 mm and weighs about 1.4 tons /pallet ;Store in a dry, moisture-proof warehouse,storage period is 6 months.

Construction method:

Dry masonry.
